DIY Power Inverter Installation: A Step-by-Step Guide for Beginners

Installing a power inverter system might seem intimidating, but with proper planning and basic electrical knowledge, it's a manageable DIY project. Whether you're setting up emergency backup power, building an off-grid system, or adding mobile power to your vehicle, this comprehensive guide walks you through the entire process safely and effectively.

Safety First: Essential Precautions

Before starting any electrical work, understand the risks and take proper precautions:

- Always disconnect power sources before working on connections
- Wear safety glasses and insulated gloves
- Work in well-ventilated areas
- Keep fire extinguisher nearby
- Never work alone on electrical projects
- If unsure, consult a professional electrician

DC electrical systems can be just as dangerous as AC systems. Short circuits in battery systems can cause fires, explosions, and serious injury. Respect the power you're working with.

Planning Your System: What You'll Need

Before purchasing components, plan your complete system:

1. Determine Power Requirements: List all devices you'll run simultaneously, add their wattages, and add 20-30% headroom. This determines your inverter size.

2. Choose Your Inverter: For basic needs, the 600W pure sine wave inverter handles essential devices. Most applications need the 2000W inverter. Heavy-duty use requires the 4000W system.

3. Size Your Battery Bank: Calculate daily consumption in watt-hours, divide by battery voltage, and add 20% reserve capacity.

4. Select Proper Wiring: Use appropriately sized cables. Our 12/3 AWG triplex cable works for smaller systems, but larger inverters need heavier gauge wire.

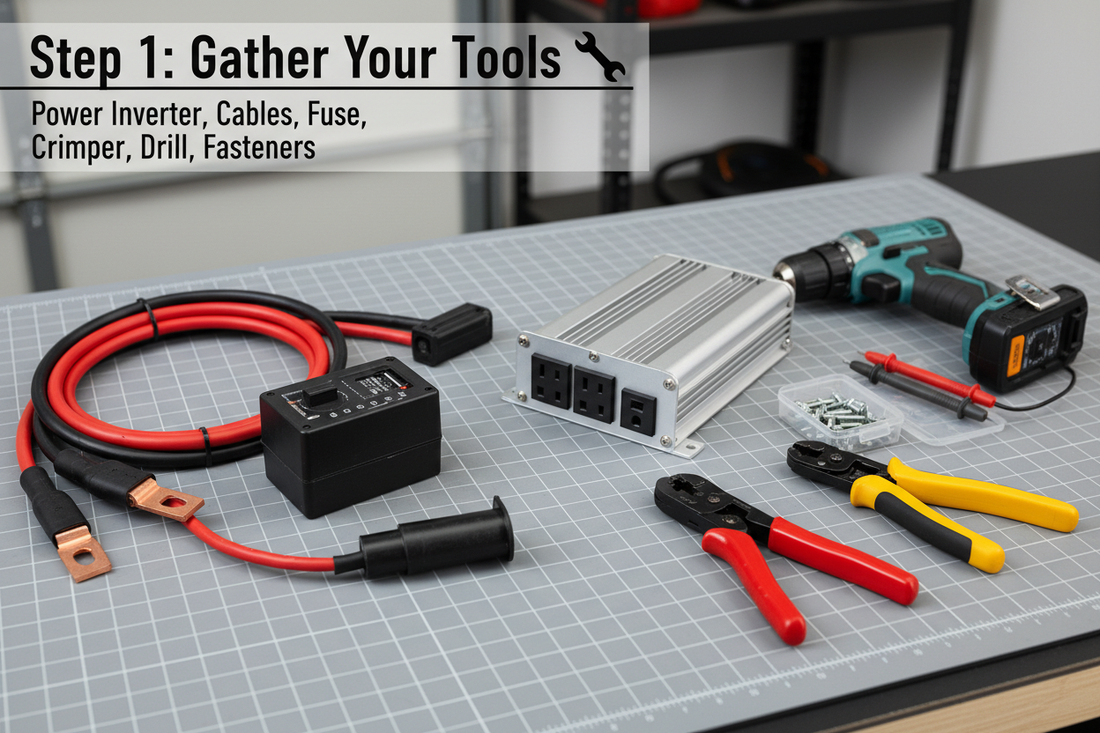

Tools and Materials Needed

Essential Tools:
- Wire strippers and cutters
- Crimping tool for cable terminals
- Screwdrivers (Phillips and flathead)
- Wrenches for battery terminals
- Drill and bits for mounting
- Multimeter for testing voltage
- Cable ties for wire management

Required Materials:
- Power inverter (sized for your needs)
- Deep-cycle batteries
- Battery cables (proper gauge)
- Fuse or circuit breaker
- Cable terminals and lugs
- Mounting hardware
- Heat shrink tubing or electrical tape

Step 1: Choosing Installation Location

Location matters for safety and performance:

Requirements:
- Dry location protected from moisture
- Well-ventilated area for heat dissipation
- Close to battery bank (minimize cable length)
- Accessible for monitoring and maintenance
- Secure mounting surface
- Away from flammable materials

For vehicle installations, under seats, in cargo areas, or in dedicated compartments work well. For home systems, garages, basements, or utility rooms are ideal.

The remote control feature on our 2000W inverter and 4000W inverter allows mounting in less accessible locations while maintaining convenient control.

Step 2: Mounting the Inverter

Secure mounting prevents damage from vibration and movement:

1. Position inverter with ventilation clearance on all sides (minimum 3-4 inches)
2. Mark mounting holes using inverter as template
3. Drill pilot holes appropriate for mounting surface
4. Secure inverter with bolts or screws rated for the weight
5. Verify inverter is level and firmly mounted
6. Ensure cooling fans have unobstructed airflow

For mobile installations, use vibration-resistant mounting hardware. The inverter should not move or rattle during vehicle operation.

Step 3: Calculating and Installing Proper Wiring

Undersized wiring causes voltage drop, heat buildup, and fire hazards. Use this guide:

For 600W Inverter (12V): 8 AWG minimum, 6 AWG recommended
For 2000W Inverter (12V): 2/0 AWG minimum, 4/0 AWG for runs over 5 feet
For 4000W Inverter (24V): 2/0 AWG minimum, 4/0 AWG recommended

Keep cable runs as short as possible—every foot adds resistance and wastes power. Our 12/3 AWG triplex cable works for smaller inverters and AC wiring, but DC connections to larger inverters need specialized heavy-gauge cable.

Step 4: Installing Fuse Protection

Fusing is critical for safety—it's your first line of defense against electrical fires:

1. Install fuse within 18 inches of battery positive terminal
2. Size fuse for 125% of inverter's maximum current draw
3. Use DC-rated fuses (AC fuses won't work properly)
4. Consider ANL fuses for large systems or circuit breakers for convenience
5. Ensure fuse holder is rated for full system current

For the 600W inverter, use a 60-80A fuse. The 2000W system needs 200-250A fusing. The 4000W inverter requires 200-250A fusing on 24V systems.

Step 5: Connecting to Battery Bank

Proper battery connections ensure safety and performance:

1. Ensure all power sources are disconnected
2. Clean battery terminals thoroughly
3. Attach cable lugs to inverter cables using proper crimping
4. Connect negative cable to battery negative terminal first
5. Connect positive cable to fuse holder (not directly to battery yet)
6. Double-check all connections are tight and correct
7. Install fuse to complete positive connection
8. Verify voltage at inverter matches battery voltage

Always connect negative first, positive last. When disconnecting, reverse the order—positive first, negative last. This prevents accidental short circuits.

Step 6: Grounding Your System

Proper grounding protects against electrical faults:

1. Connect inverter ground terminal to vehicle chassis (mobile) or ground rod (stationary)
2. Use minimum 10 AWG wire for grounding
3. Ensure ground connection is clean, tight, and corrosion-free
4. For home systems, ground to same point as household electrical system
5. Never use gas lines or water pipes for grounding

Follow manufacturer specifications exactly—improper grounding creates safety hazards and may void warranties.

Step 7: Testing Your Installation

Before connecting loads, verify everything works correctly:

1. Use multimeter to verify battery voltage at inverter terminals
2. Turn on inverter using power switch or remote control
3. Check that inverter display shows correct voltage
4. Measure AC output voltage (should be 110-120V)
5. Connect small test load (lamp or phone charger)
6. Verify load operates correctly
7. Check all connections for heat after 10-15 minutes
8. Listen for unusual sounds (buzzing, clicking, humming)

If anything seems wrong—excessive heat, strange sounds, incorrect voltage—shut down immediately and troubleshoot before proceeding.

Step 8: Cable Management and Organization

Professional installations include proper cable management:

1. Route cables away from heat sources and moving parts
2. Secure cables with appropriate ties or clamps
3. Protect cables from abrasion and sharp edges
4. Label all connections for future reference
5. Keep AC and DC wiring separated
6. Ensure cables cannot be accidentally disconnected

Good cable management prevents damage, simplifies troubleshooting, and looks professional.

Common Installation Mistakes to Avoid

Undersized Wiring: The most common and dangerous mistake. Always use proper gauge wire for your inverter size.

No Fusing: Never skip fuse protection—it prevents fires and protects your investment.

Poor Connections: Loose connections create heat and resistance. Crimp properly and tighten securely.

Inadequate Ventilation: Inverters generate heat. Ensure proper airflow or they'll overheat and shut down.

Wrong Battery Type: Use deep-cycle batteries, not automotive starting batteries, for inverter systems.

Ignoring Polarity: Reversing positive and negative destroys inverters instantly. Double-check before connecting.

System-Specific Installation Tips

For 600W Systems: The 600W inverter is beginner-friendly. Smaller cables, lower currents, and simpler installation make it perfect for first-time installers.

For 2000W Systems: The 2000W inverter requires more careful planning. Heavy cables, proper fusing, and adequate battery capacity are essential. Consider professional help if uncomfortable with high-current DC wiring.

For 4000W Systems: The 4000W inverter is a serious installation. The 24V input simplifies wiring compared to 12V, but currents are still substantial. Professional installation is recommended unless you have electrical experience.

Adding Solar Charging

Solar panels extend your system's capabilities:

1. Size solar array to recharge battery bank daily
2. Install charge controller between panels and batteries
3. Use proper gauge wire from panels to controller
4. Mount panels for maximum sun exposure
5. Angle panels appropriately for your latitude

Solar charging makes systems truly independent, perfect for off-grid applications or emergency backup.

Maintenance and Monitoring

Regular maintenance ensures long-term reliability:

Monthly:
- Check battery voltage and charge state
- Inspect connections for corrosion or looseness
- Verify inverter display shows correct information
- Test system under load

Quarterly:
- Clean battery terminals
- Check cable insulation for damage
- Verify fuse integrity
- Test ground connection

Annually:
- Deep clean all components
- Check battery capacity and health
- Verify all mounting hardware is secure
- Update system documentation

The LCD displays on the 2000W and 4000W inverters provide real-time monitoring that simplifies maintenance and troubleshooting.

Troubleshooting Common Issues

Inverter Won't Turn On: Check battery voltage, verify fuse, ensure connections are tight.

Low Output Voltage: Check battery charge, verify cable size, inspect connections for resistance.

Overheating: Improve ventilation, reduce load, check for proper cable sizing.

Alarm Sounds: Check battery voltage (low voltage alarm) or reduce load (overload alarm).

When to Call a Professional

DIY installation saves money, but some situations require professional help:

- Permanent home installations connecting to household circuits
- Systems over 3000W
- Installations requiring electrical permits
- Complex multi-inverter setups
- When you're uncomfortable with any aspect of installation

Safety is paramount—there's no shame in hiring professionals for peace of mind.

Building Your System with Confidence

DIY inverter installation is achievable with proper planning, quality components, and attention to safety. Whether you're installing a basic 600W system for emergency backup, a comprehensive 2000W setup for off-grid living, or a powerful 4000W system for serious applications, following these guidelines ensures safe, reliable operation.

Take your time, double-check everything, and don't hesitate to ask for help when needed. The result—reliable power anywhere you need it—is worth the effort.
